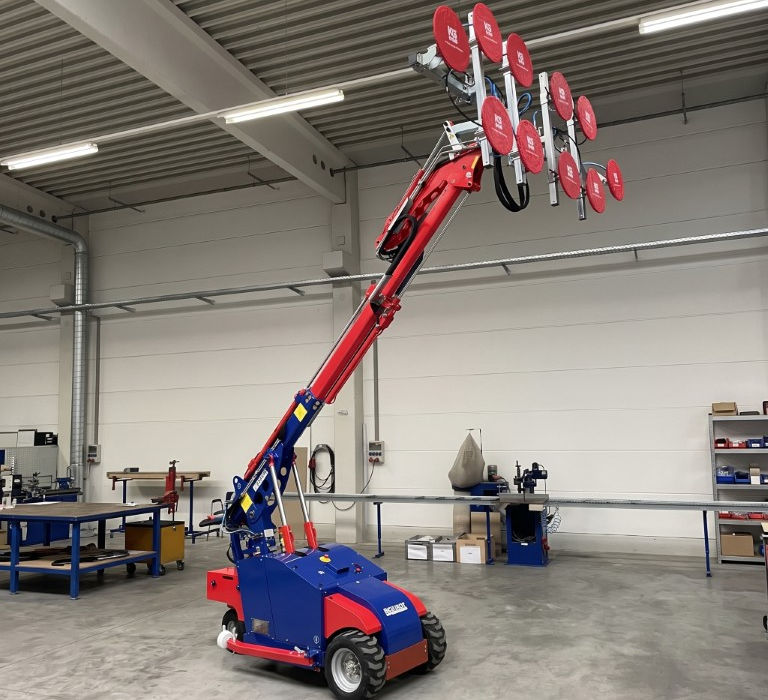

Premium Hydraulic Heavy-Duty Glass Lifting Robot
Premium 1,025 kg capacity all-terrain glass lifting robot with dual hydraulic telescopes, turning and swivelling technology
The KS Robot 1025 Offroad represents the pinnacle of the KS Robot series, engineered for the most demanding heavy-duty applications. With a maximum load capacity of 1,025 kg and dual hydraulic telescopes extending up to 2,000 mm total, it delivers superior reach and flexibility during complex assembly operations. The innovative hydraulic turning and swiveling cylinder (+/- 45°) enables operators to rotate heavy glass panes effortlessly and safely directly into window reveals without manual repositioning. Powered by advanced servo proportional technology with a precision joystick remote control, all movements—telescoping, lifting, lowering, tilting, and turning—are executed with exceptional precision and smoothness. Ten 350 mm suction pads, multifunction steering, integrated safety light, and electrically controlled all-terrain drive ensure maximum operator safety and control. The KS Robot 1025 Offroad has proven its reliability, durability, and superior technical performance in demanding industrial and craft applications globally.
Servo Proportional Joystick Control
Servo proportional joystick control enables one-operator execution of all functions with infinitely variable movements for exact positioning. 3 kW electric wheel drive delivers shock-free operation at maximum 1,025 kg capacity.
Dual Hydraulic Telescopes & Dynamic Turning
Dual hydraulic boom extensions provide 2,000 mm total reach. Hydraulic turning (+/- 45°) rotates glass directly into window reveals without manual repositioning. 100 mm lateral deviation and electrical floor-to-overhead tilting enable precise positioning throughout assembly.
Heavy-Duty Hydraulic System & Suction Power
Dual hydraulic system handles 1,025 kg with ten suction pads and independent safety circuits. All-terrain drive masters difficult terrain. 1,650 kg weight with removable counterweights provides stability.
Integrated Safety Features & Proportional Control
Integrated safety light and dual hydraulic fail-safe circuits with servo proportional control prevent sudden load shifts. Radio remote positions operator safely away. Single-operator glass installation with full hydraulic control.
SPECIFICATIONS
Load capacity: max. 1,025 kg
Device transport height: approx. 1,850 mm
Device width: approx. 970 mm
Device width supports: approx. 1,050 mm
Device length: approx. 2,800 mm
Total weight including counterweights: approx. 1,650 kg
Battery: 300 Ah, 24 Volt
Wheel drive: 3 kW
Suction pads: 10 x 350 mm
Hydraulic double telescope: 2 x 1,000 mm total stroke
Hydraulic turning: +/- 45°
Lateral sideward-deviation: 100 mm
Servo proportional technology with precision joystick control
Special articulated joint for floor-to-overhead tilting
Multifunction steering wheel
Integrated safety light
Electric all-terrain front-wheel drive
Removable counterweights for load optimization
Load capacity and weight vary depending on configuration
OPTIONS
Additional charge for lateral swivel cylinder configuration
Fast coupling for individual suction pad disconnection (10 pads included)
Protection covers for suction pads 360mm (10 included)
Extended hydraulic turning radius configurations
Additional counterweight sets for load balancing optimization
Custom suction pad configurations for specialized glass types
Enhanced hydraulic system packages for extreme-load applications
Alternative boom extension ratios for increased reach or precision
Specialized remote control configurations
Load capacity: max. 1,025 kg
Device transport height: approx. 1,850 mm
Device width: approx. 970 mm
Device width supports: approx. 1,050 mm
Device length: approx. 2,800 mm
Total weight including counterweights: approx. 1,650 kg
Battery: 300 Ah, 24 Volt
Wheel drive: 3 kW
Suction pads: 10 x 350 mm
Hydraulic double telescope: 2 x 1,000 mm total stroke
Hydraulic turning: +/- 45°
Lateral sideward-deviation: 100 mm
Servo proportional technology with precision joystick control
Special articulated joint for floor-to-overhead tilting
Multifunction steering wheel
Integrated safety light
Electric all-terrain front-wheel drive
Removable counterweights for load optimization
Load capacity and weight vary depending on configuration
Additional charge for lateral swivel cylinder configuration
Fast coupling for individual suction pad disconnection (10 pads included)
Protection covers for suction pads 360mm (10 included)
Extended hydraulic turning radius configurations
Additional counterweight sets for load balancing optimization
Custom suction pad configurations for specialized glass types
Enhanced hydraulic system packages for extreme-load applications
Alternative boom extension ratios for increased reach or precision
Specialized remote control configurations
