Harp + Z Trolleys
Single-Glaze Slot Retention
Glass sits in slotted bases to keep sheets separated and stable during movement.
Non-Marking Polymer Protection
Polymer coatings on contact bars and frames prevent scratching and edge damage.
High-Capacity Castors
Four heavy-duty turning castors ensure smooth manoeuvring and long working life.
Factory-Safe Lockdown Feet
Rear stabilising feet secure the trolley during loading and unloading.
SPECIFICATIONS
Harp Trolley
50-slot single-glaze harp trolley
Approx. 1132 mm wide × 1000 mm deep × 1400 mm tall
Plastic-coated 8 mm steel retention bars
Slots approximately 8.2 mm wide for single glazing
Kitset construction for ease of shipping
Handles fitted for easy factory movement
Rear lockdown feet for safe loading
Non-marking polymer surfaces protect glass ends
Hot dip galvanised or painted finish
Welded construction for durability

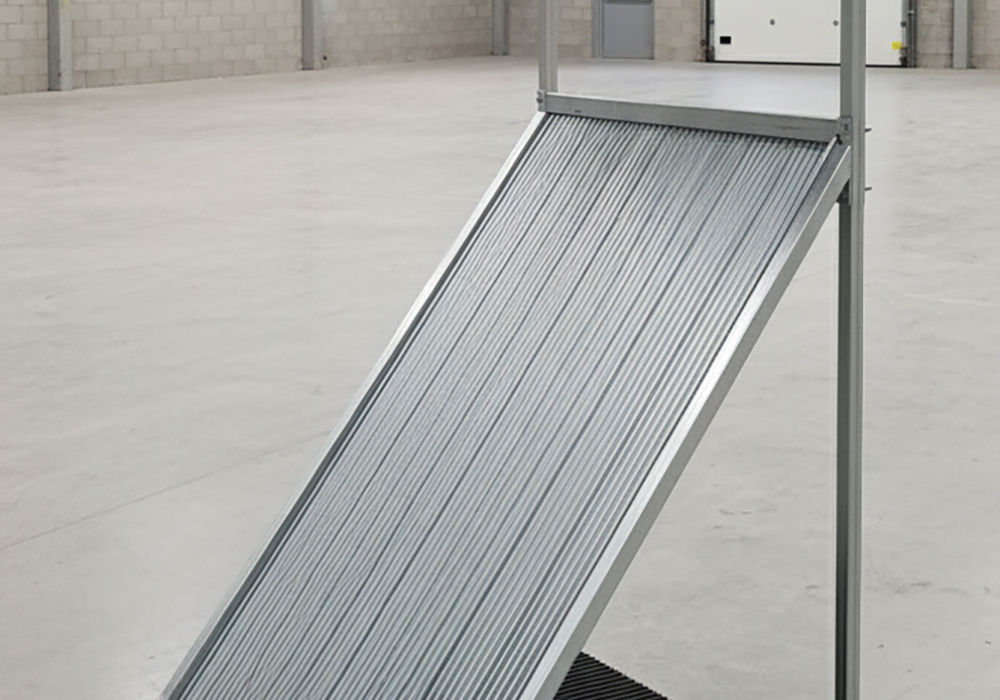

Z-Trolley
50-slot single-glaze harp configuration with top “Z” supports
Approx. 1132 mm wide × 1000 mm deep × 1800 mm tall
8 mm plastic-coated bars with single horizontal Z support row
Options for dual Z support rows
Slots approximately 8.2 mm wide (12 mm optional) standard. Slot width options of 8.2 mm and 12.5 mm custom options available
Non-marking polymer contact surfaces on key supports
Four turning castors rated to approximately 460 kg each
Kitset construction for compact shipping
Painted or Hot dip galvanised finish options
Welded or kitset construction for reduced shipping costs
OPTIONS
Harp Trolley
Colour-coded harp separators
Galvanised or painted finish choices
Adaptable retention system for DGU handling
Z-Trolley
Custom slot width for thicker glass units
Single or dual top Z support rows
Adaptable DGU retention solutions
Harp Trolley
50-slot single-glaze harp trolley
Approx. 1132 mm wide × 1000 mm deep × 1400 mm tall
Plastic-coated 8 mm steel retention bars
Slots approximately 8.2 mm wide for single glazing
Kitset construction for ease of shipping
Handles fitted for easy factory movement
Rear lockdown feet for safe loading
Non-marking polymer surfaces protect glass ends
Hot dip galvanised or painted finish
Welded construction for durability
Z-Trolley
50-slot single-glaze harp configuration with top “Z” supports
Approx. 1132 mm wide × 1000 mm deep × 1800 mm tall
8 mm plastic-coated bars with single horizontal Z support row
Options for dual Z support rows
Slots approximately 8.2 mm wide (12 mm optional) standard. Slot width options of 8.2 mm and 12.5 mm custom options available
Non-marking polymer contact surfaces on key supports
Four turning castors rated to approximately 460 kg each
Kitset construction for compact shipping
Painted or Hot dip galvanised finish options
Welded or kitset construction for reduced shipping costs
Harp Trolley
Colour-coded harp separators
Galvanised or painted finish choices
Adaptable retention system for DGU handling
Z-Trolley
Custom slot width for thicker glass units
Single or dual top Z support rows
Adaptable DGU retention solutions
WHY CHOOSE METALCRAFT
Our products are engineered for durability, safety, and efficiency — trusted by glazing and window experts across New Zealand and around the world.
PROVEN EXPERTISE
With over 30 years in glass, window, and flat-panel handling, our team solves complex challenges with practical, industry-led solutions that improve safety, reliability, and productivity.
Performance engineered
Every product is built in-house using advanced CAD, 3D modelling, and proven manufacturing systems—ensuring precision, durability, and long service life.
skills & Quality
From design to fabrication, our qualified tradespeople and supervisors work with steel, aluminium, and specialised materials to deliver world-class results.
Trusted Worldwide
Proudly New Zealand-made and exported globally, our equipment is recognised for innovation, robustness, and delivering strong return on investment through safer handling and reduced damage.
