Extended-Reach Underground Work System
Extended-reach 500 kg loading system with 17m cable for deep excavation and underground applications

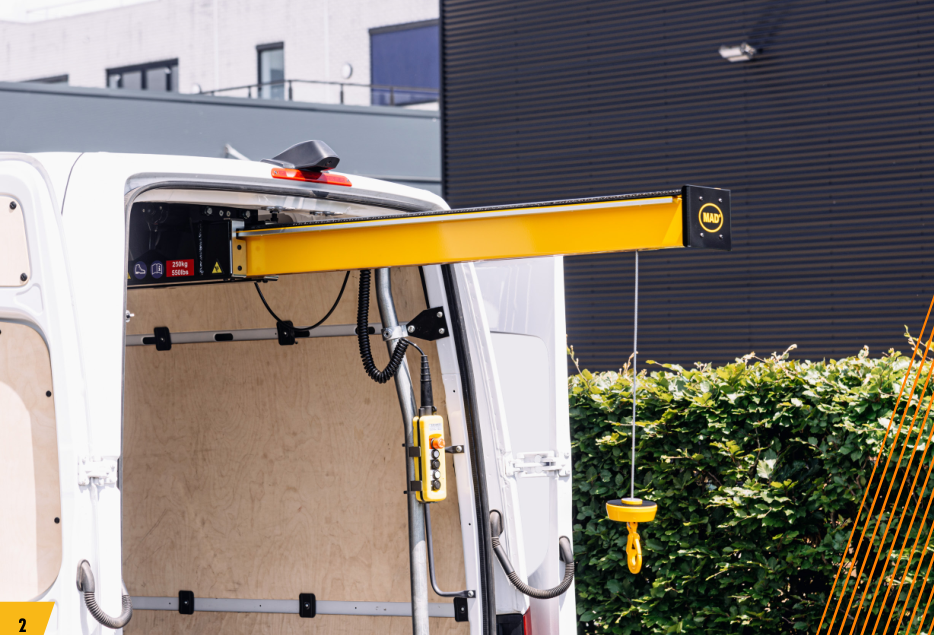

The EasyLoad 501 is purpose-built for below-ground work—sewer inspections, underground construction, deep excavation, and confined-space operations where standard reach is insufficient. With a professional-grade 17-meter hoisting cable and 500 kg capacity, it enables safe material and equipment lowering/raising into deep shafts and underground access points. Non-twisting steel cable (5mm x 44m) ensures reliable operation in demanding conditions. Designed for van installation only, the 501 delivers extended vertical reach of 17m while maintaining the compact, efficient design that eliminates manual heavy lifting. Wired remote control provides intuitive operation at ground level. The 501 is the foundation for confined-space work; upgrade to the 502 for fall-arrest anchor capability.
Extended-Reach Deep-Work Capability
17-meter non-twisting cable reach enables one-person operation from safe ground-level position, eliminating personnel at shaft edges while smooth electrical control ensures safe descent into deep excavations.
Specialised Underground Application Design
Below-ground rated with non-twisting cable system, horizontal load positioning, and adjustable reach. Handles confined excavation work safely.
Controlled Extended-Reach Descent for Deep Work
Professional-grade cable and hoist system with non-twisting design for extended operations,
smooth descent control, and remote operation that keeps personnel safe from confined-space
edges. Upgrade to the 502 for certified fall-arrest anchor capability.
Extended-Cable System for Confined Spaces
Specialized 5mm x 44m non-twisting steel cable engineered for deep vertical work. Professional hoist system handles extended reaches without compromise to safety. Van frame configuration optimized for underground site deployment.
SPECIFICATIONS
Load capacity: max. 500 kg
Installation length: 2,500 mm
Maximum reach behind vehicle: 1,170 mm
Vertical reach of hook: 17.0 m
Total weight: 184 kg
Power supply: 12V
Installation height: flexible (under/over 2m variants available)
Remote control: wired
Hoisting cable: 5 mm steel x 44 m (non-twisting cable)
Cargo space consumption: minimal when secured
Installation: van frame only (not available for box vans)
Cable type: non-twisting for rotation-free descent
Suitable for: sewer inspection, excavation, underground work
Upgrade path: conversion kit available to EasyLoad 502
OPTIONS
Conversion kit (EL 501 → EL 502 with fall-arrest anchor)
Wide-area LED light with magnetic socket
Spot beam LED light with magnetic socket
Hoisting cable replacement kits (5mm x 44m non-twisting steel)
Electric van mounting kits (specific van models)
Alternative remote control configurations
Load capacity: max. 500 kg
Installation length: 2,500 mm
Maximum reach behind vehicle: 1,170 mm
Vertical reach of hook: 17.0 m
Total weight: 184 kg
Power supply: 12V
Installation height: flexible (under/over 2m variants available)
Remote control: wired
Hoisting cable: 5 mm steel x 44 m (non-twisting cable)
Cargo space consumption: minimal when secured
Installation: van frame only (not available for box vans)
Cable type: non-twisting for rotation-free descent
Suitable for: sewer inspection, excavation, underground work
Upgrade path: conversion kit available to EasyLoad 502
Conversion kit (EL 501 → EL 502 with fall-arrest anchor)
Wide-area LED light with magnetic socket
Spot beam LED light with magnetic socket
Hoisting cable replacement kits (5mm x 44m non-twisting steel)
Electric van mounting kits (specific van models)
Alternative remote control configurations
