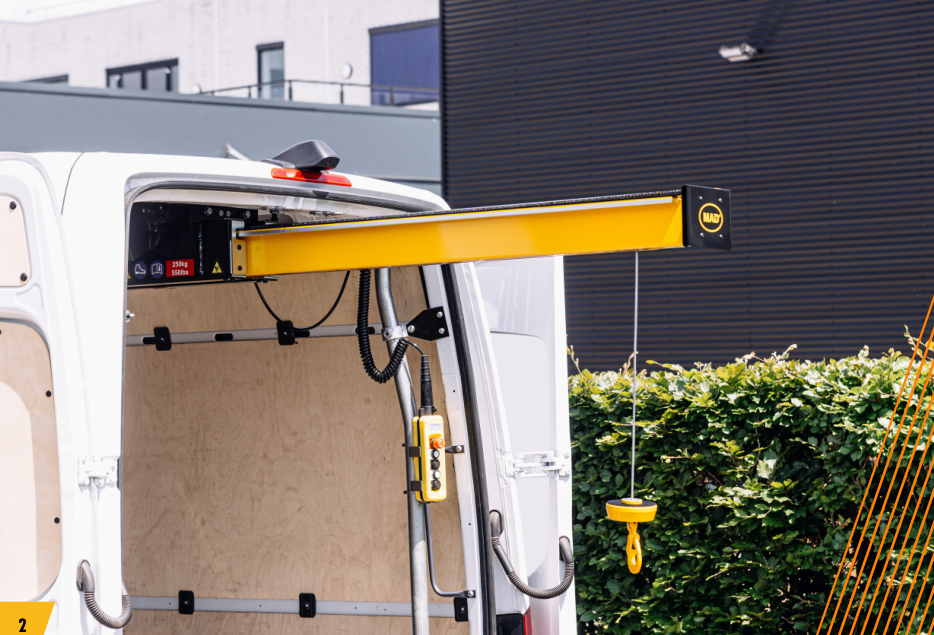

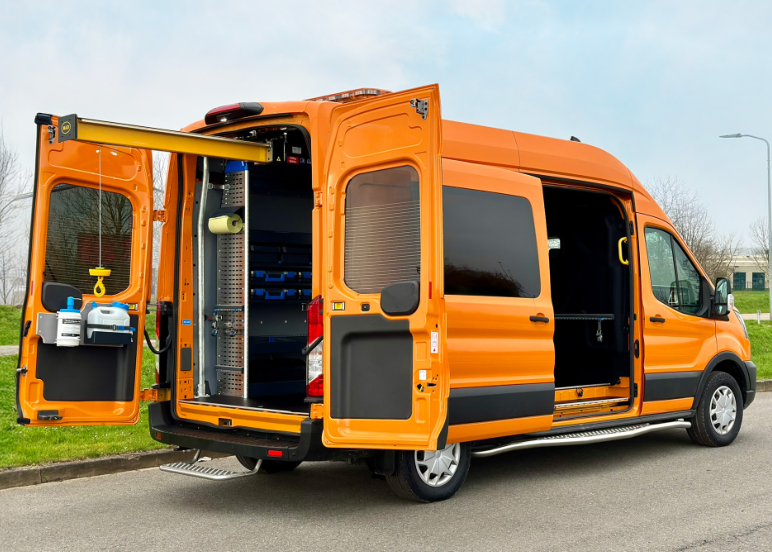

Heavy-Duty Single-Person Van Loading System
Robust 500 kg van loading system with maximum efficiency and compact installation
The EasyLoad 500 doubles the capacity of the EasyLoad 250, delivering 500 kg of lifting power while maintaining the compact, space-efficient design that professionals demand. Engineered for medium to heavy-duty loading applications, it handles demanding construction materials, tools, and equipment without sacrificing cargo space. The system fits vans and box vans with quick plug-and-play installation in approximately 4 hours. Wired remote control with optional wireless upgrade provides intuitive one-operator control from ground level. Horizontal displacement across full width and length enables precise load positioning. At only €100 per month integral cost, the EasyLoad 500 delivers professional-grade reliability and operator safety for years of dependable service.
500 kg Single-Operator Control
Double the capacity of the 250 with the same compact footprint, remote control, and single-person operation that eliminates manual handling and reduces operator injury.
Universal Van and Box Van Compatibility
Available as complete van frame or crossbeam set with adjustable installation heights, lock positions, and cable lengths—plus removable design for fleet transfers.
Controlled Load Handling with Certified Systems
Smooth electrical control with wired remote and safe descent prevent jerky movements and drops, while horizontal displacement enables precise positioning without manual adjustment.
High-Capacity Compact Motor System
Powerful 500 kg motor in compact hoist with universal van mounting, high-quality construction, and robust steel cable system for reliable heavy-duty operations.
SPECIFICATIONS
Load capacity: max. 500 kg
Installation length: 1,900 mm or 2,300 mm (two frame sizes)
Maximum reach behind vehicle: 770 mm (1,900mm) or 1,170 mm (2,300mm)
Vertical reach of hook: 2.7 m - 2.9 m (standard configurations)
Total weight: 130 kg (1,900mm) or 140 kg (2,300mm)
Power supply: 12V or 24V options
Installation height: suitable for vans under 2m or over 2m
Remote control: wired standard, wireless optional
Hoisting cable: 5 mm steel (standard)
Installation time: approximately 4 hours
Van frame or box van crossbeam set configurations available
Lock position left or right options
OPTIONS
Wireless remote control (upgrade from wired)
Installation height variants (under 2m or over 2m)
Lock position left or right (securing position choice)
Box van crossbeam set (alternative to van frame)
Wide-area LED light with magnetic socket
Spot beam LED light with magnetic socket
Hoisting cable replacement kits (steel, 5mm x 10.25m)Electric van mounting kits (Ford, MAN, Mercedes, Volkswagen models)
Load capacity: max. 500 kg
Installation length: 1,900 mm or 2,300 mm (two frame sizes)
Maximum reach behind vehicle: 770 mm (1,900mm) or 1,170 mm (2,300mm)
Vertical reach of hook: 2.7 m - 2.9 m (standard configurations)
Total weight: 130 kg (1,900mm) or 140 kg (2,300mm)
Power supply: 12V or 24V options
Installation height: suitable for vans under 2m or over 2m
Remote control: wired standard, wireless optional
Hoisting cable: 5 mm steel (standard)
Installation time: approximately 4 hours
Van frame or box van crossbeam set configurations available
Lock position left or right options
Wireless remote control (upgrade from wired)
Installation height variants (under 2m or over 2m)
Lock position left or right (securing position choice)
Box van crossbeam set (alternative to van frame)
Wide-area LED light with magnetic socket
Spot beam LED light with magnetic socket
Hoisting cable replacement kits (steel, 5mm x 10.25m)Electric van mounting kits (Ford, MAN, Mercedes, Volkswagen models)
