Compact Offroad Glass Lifting Robot
Small, strong and lightweight electric glass lifting device for low-capacity floors with 350 kg load capacity

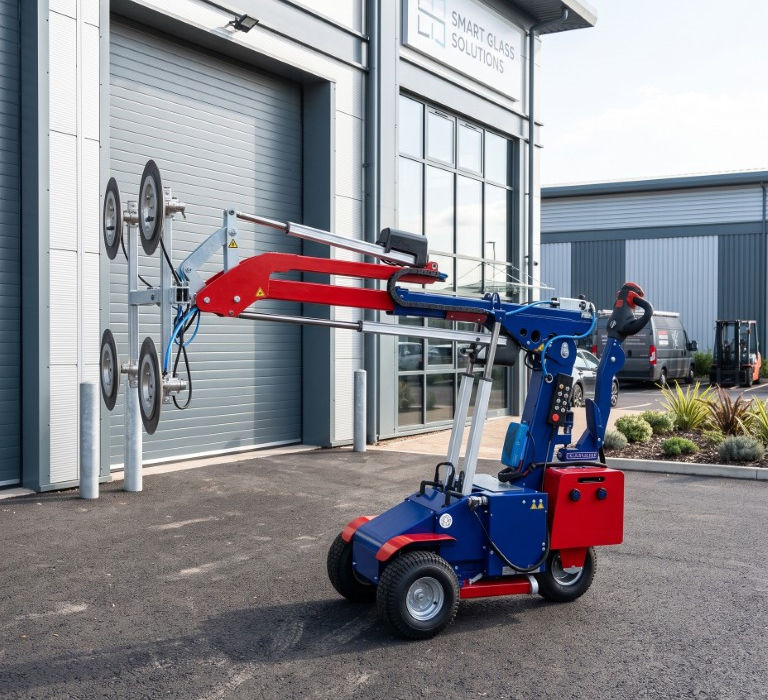

The KS Robot 350 Offroad is engineered for construction sites where space and floor capacity are critical constraints. With a compact design and low net weight of 535 kg, it fits through small elevators and interior doors while handling loads up to 350 kg effortlessly. Powered by exchangeable 24V batteries, it masters difficult terrain with all-terrain offroad tyres and differential front-wheel drive. The 600 mm telescopic boom with special rotating articulated joint tilts electrically from floor to overhead position, enabling direct pickup from work tables and production lines. Ideal for both indoor and outdoor use, the KS Robot 350 Offroad combines precision control, flexible positioning, and robust performance in a remarkably compact package.
Electric Synchronized Control System
Electrical control via cable or radio remote with exchangeable battery. 600 mm telescopic boom with gentle starting for smooth operation.
Compact & Versatile Configuration
Foldable steering saves space. 100 mm side adjustment for precise positioning. Electrical tilting (+/- 90°) enables direct pickup from work surfaces. Compact 1,590 mm length fits narrow doorways.
Heavy-Duty Construction for Low-Capacity Floors
535 kg net weight with removable counterweights suits restricted-load floors. All-terrain differential drive masters difficult terrain. Rugged construction for challenging sites.
Dual-Circuit Vacuum Safety System

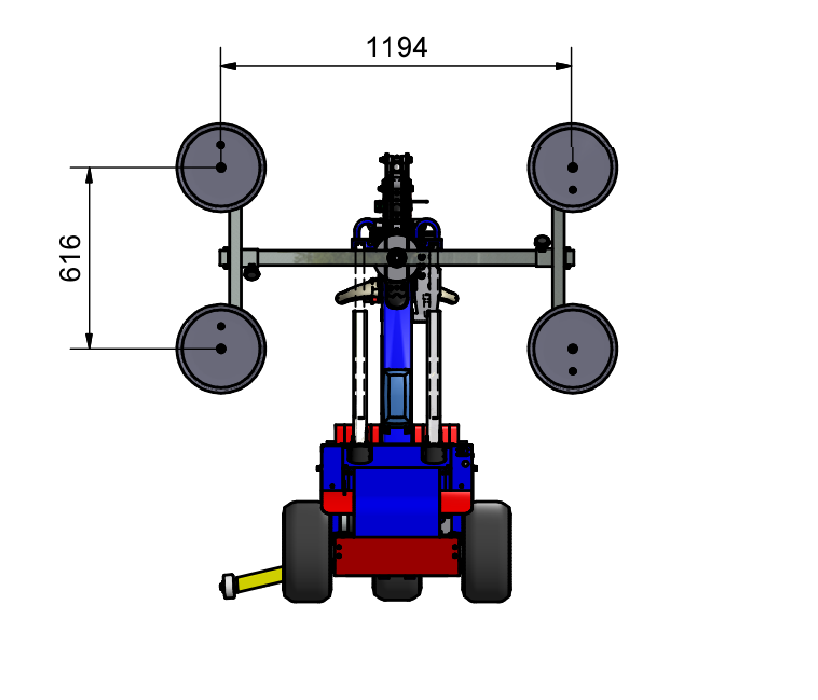

4 suction plates with dual independent circuits and separate pumps for safety redundancy. Articulated joint enables +/- 90° electrical tilting. Servo remote and multifunction steering.
SPECIFICATIONS
Load capacity: max. 350 kg
Device length: approx. 1,590 mm
Device width: approx. 775 mm
Device height: approx. 1,410 mm
Total weight: approx. 535 kg
Dismountable counterweights: 4 x 26 kg, 6 x 17 kg
High-performance battery: 2 x 12V = 24 Volt, exchangeable
Power supply: 230V, 50 Hz
Telescopic boom: 600 mm extension
Vacuum suction unit: 2-circuit system with 2 vacuum pumps and 4 suction plates
Special articulated joint: electrical tilting +/- 90°
Front-wheel drive with all-terrain offroad tyres
Lateral adjustment: up to 100 mm
Multifunction steering wheel with cable or radio remote control
Gentle starting via integrated driving element
Synchronized control unit
OPTIONS
Radio remote control instead of cable remote
Electrical turning unit +/- 90° for independent suction frame rotation (reduces payload by 50 kg)
Fast coupling for individual suction pad disconnection
Hook adapter for standalone crane applications
Load fork 280/350 for pallet handling
LED projector with magnetic socket (powered by machine battery)
Loading ramp 2.6 m x 1.0 m (max. 1,000 kg capacity)
Protection covers for suction pads 300 mm with KS logo
Additional counterweight packages for weight optimization
Second battery pack (not included in base price)
Load capacity: max. 350 kg
Device length: approx. 1,590 mm
Device width: approx. 775 mm
Device height: approx. 1,410 mm
Total weight: approx. 535 kg
Dismountable counterweights: 4 x 26 kg, 6 x 17 kg
High-performance battery: 2 x 12V = 24 Volt, exchangeable
Power supply: 230V, 50 Hz
Telescopic boom: 600 mm extension
Vacuum suction unit: 2-circuit system with 2 vacuum pumps and 4 suction plates
Special articulated joint: electrical tilting +/- 90°
Front-wheel drive with all-terrain offroad tyres
Lateral adjustment: up to 100 mm
Multifunction steering wheel with cable or radio remote control
Gentle starting via integrated driving element
Synchronized control unit
Radio remote control instead of cable remote
Electrical turning unit +/- 90° for independent suction frame rotation (reduces payload by 50 kg)
Fast coupling for individual suction pad disconnection
Hook adapter for standalone crane applications
Load fork 280/350 for pallet handling
LED projector with magnetic socket (powered by machine battery)
Loading ramp 2.6 m x 1.0 m (max. 1,000 kg capacity)
Protection covers for suction pads 300 mm with KS logo
Additional counterweight packages for weight optimization
Second battery pack (not included in base price)
