Lightweight Emission-Free Glass Lifting Robot
Compact, battery-powered glass lifting system with 280 kg capacity and flexible vacuum suction technology

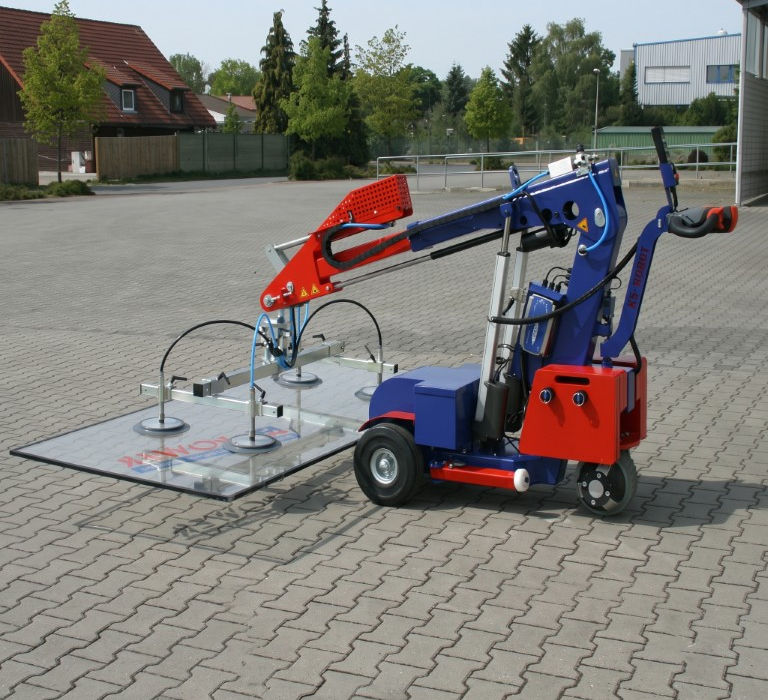

The KS Rob 280 M lifts glass panes, windows, doors, metal sheets, stone, wooden and PVC plates up to 280 kg—in confined spaces where other equipment won't fit. Weighing just 260 kg, it reduces to 90 kg when counterweights and vacuum system are removed, making it ideal for stairs and upper floors with floor loading constraints. Powered by three Makita batteries, it delivers smooth, precise control via high-quality electric linear cylinders across all movements. The modular vacuum system is removable and can attach a crane hook for standalone applications. Move more. Carry less. Built for professionals prioritizing efficiency and safety on challenging sites.
Electric Quick-Change Battery System
Three 18V Makita batteries power all functions with quick-change capability. Electric linear cylinders control telescoping, lifting, lowering, and tilting at the press of a button. No fuel emissions, no manual hydraulics—pure electric convenience.
Compact, Modular Design
Fits through interior doors and lifts. Removable counterweights (6 x 22 kg) and detachable vacuum suction system reduce overall weight for transport or limited floor loading. Vacuum system moves laterally +/- 90° for easy door transit. Optional crane hook attachment enables independent suction system use.
Dual-Circuit Vacuum Safety System
Vacuum suction unit features 4 suction discs with 2-circuit safety system and two separate pumps for maximum reliability. SDKG joint provides electrically controlled tilting of vacuum suction unit from floor to overhead position. Linear cylinders ensure precise, controlled load handling throughout all operations.
Emission-Free Operation
Completely battery-powered electric drive produces zero emissions—ideal for indoor construction, renovations, and environmentally conscious projects. No fumes, no pollution, no fuel consumption.
SPECIFICATIONS
Load capacity: max. 280 kg
Device length: approx. 1,600 mm
Device width: approx. 690 mm
Device height: approx. 1,300 mm
Total weight: approx. 260 kg
Weight without VacuFlex 280 and counterweights: approx. 90 kg
Own weight KS VacuFlex 280 vacuum suction unit: approx. 35 kg
Exchangeable batteries: 3 x 18V Makita
Dismountable counterweights: 6 x 22 kg
Vacuum suction system: 4 suction discs with 2-circuit safety system and two separate pumps
Linear cylinders for smooth telescoping, lifting, lowering, and tilting
Front tyres adjustable outwards to increase track width for enhanced stability
SDKG joint included for electric vacuum suction unit tilting from floor to overhead
OPTIONS
Crane hook attachment for independent vacuum suction system use (max. 280 kg)
Removable counterweights for weight reduction and transport optimization
Adjustable front tyres for increased track width and assembly stability
Quick-change Makita battery system for extended runtime
Optional crane adapter for standalone KS VacuFlex 280 operation
Lateral vacuum suction adjustment +/- 90° for confined space navigation
Custom weight configurations for specific floor-load requirements
Load capacity: max. 280 kg
Device length: approx. 1,600 mm
Device width: approx. 690 mm
Device height: approx. 1,300 mm
Total weight: approx. 260 kg
Weight without VacuFlex 280 and counterweights: approx. 90 kg
Own weight KS VacuFlex 280 vacuum suction unit: approx. 35 kg
Exchangeable batteries: 3 x 18V Makita
Dismountable counterweights: 6 x 22 kg
Vacuum suction system: 4 suction discs with 2-circuit safety system and two separate pumps
Linear cylinders for smooth telescoping, lifting, lowering, and tilting
Front tyres adjustable outwards to increase track width for enhanced stability
SDKG joint included for electric vacuum suction unit tilting from floor to overhead
Crane hook attachment for independent vacuum suction system use (max. 280 kg)
Removable counterweights for weight reduction and transport optimization
Adjustable front tyres for increased track width and assembly stability
Quick-change Makita battery system for extended runtime
Optional crane adapter for standalone KS VacuFlex 280 operation
Lateral vacuum suction adjustment +/- 90° for confined space navigation
Custom weight configurations for specific floor-load requirements
