Electric Offroad Assembly Crane
Compact, electric-powered assembly crane for heavy-duty outdoor construction with 600 kg load capacity
The compact and flexible KS Crane 600 Offroad is engineered for the easy and effort-saving assembly of heavy construction elements on rough ground. With coarse-treaded tires and electric front drive, it masters uneven terrain effortlessly. Equipped with powerful lifting cylinders, gas pressure dampers, double telescope (electric or manual), and servo remote control, the KS Crane 600 Offroad delivers superior assembly comfort and precision positioning for demanding outdoor applications.
Electric Drive & Control
Electric drive, electric telescoping, and lift/lower functions at the touch of a button. Intelligent travel drive with two speed settings for smooth operation and reduced operator fatigue.
Precision Positioning System
Lateral offset up to 100 mm for exact element positioning during assembly. Variable hook assembly allows optimum mounting angle. Double telescope (electric or manual) provides flexible reach configurations.
Heavy-Duty Lifting Performance
Powerful lifting cylinders with two integrated gas dampers ensure stable, controlled loads up to 600 kg. Removable counterweights (12 x 23 kg) optimize balance and stability on rough terrain.
Advanced Terrain Mastery
Front-wheel drive with coarse-grained tires and PU-filled front tire technology for superior stability. High-performance 24V battery system with integrated 24V socket for charging assembly tools onsite.
SPECIFICATIONS
Load capacity: max. 600 kg

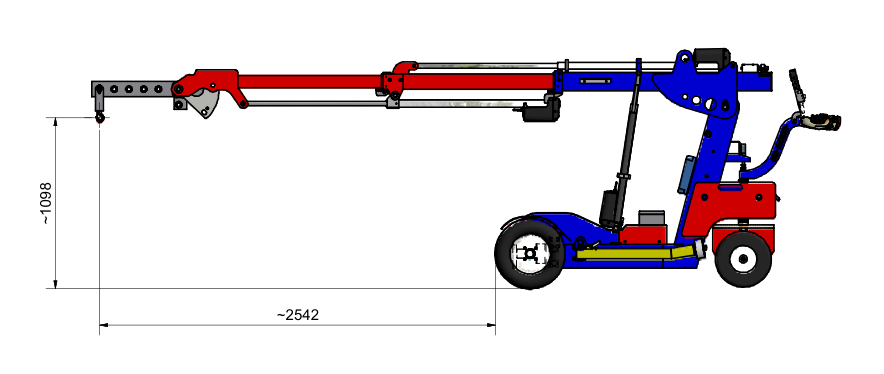

Outreach in front of wheels: approx. 2,600 mm
Outreach at highest point: approx. 4,100 mm
Device width: approx. 970 mm
Total weight: approx. 815 kg
Removable counterweights: 12 x 23 kg
High-performance battery: 2 x 12V = 24 Volt
Charging current: 230V, 50 Hz (110V / 60 Hz optional)
Multifunction steering wheel and wired remote control
Lateral offset: up to 100 mm with PU-filled front tires
Variable hook assembly for optimum positioning
Powerful lifting cylinders with gas dampers included
Intelligent travel drive with two speed settings
OPTIONS
Electric or manual double telescope configurations
Variable lateral offset positioning system
Adjustable hook assembly angles for different load types
Charging voltage options: 230V 50 Hz or 110V 60 Hz
Servo remote remote control for extended reach operation
Removable counterweight system for weight optimization
On-device 24V socket for cordless tool charging
